Automobile Electronic FR4 4OZ PCBA Board Assembly 4mm Thickness

Name: Automobile Electronic FR4 4OZ PCBA Board Assembly 4mm Thickness
Brand: FASTPCBA
Price: 1 USD

China Automobile Electronic FR4 4OZ PCBA Board Assembly 4mm Thickness wholesale

Brand Name : FASTPCBA

Model Number : One-Stop PCB Assembly

Certification : IATF16949, ISO13485, ISO9001

Place of Origin : China

MOQ : 1pcs

Price : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150000 Pieces per Month

Delivery Time : 5

Packaging Details : PCB: Vacuum Packing/ PCBA: ESD Packing

Number of layers : 1-48

Material : FR4, High TG FR4, High Frequency, Alum, FPC

Min space : 0.075mm

Min line : 0.075mm

Function Test : 100% Functional test

PCBA Testing : X-ray,AOI Test,Functional test

Contact Now

Fast Turnkey Customize Medical Industrial Automobile Electronic PCBA Board Service PCB Assembly

FASTPCBA is the high tech pcba factory in shenzhen china over 20 years, our pcba service feature: middle and small batch quick pcb prototype, turnkey pcb assembly, high quality custom pcba manufacturing, original package components procurements etc.

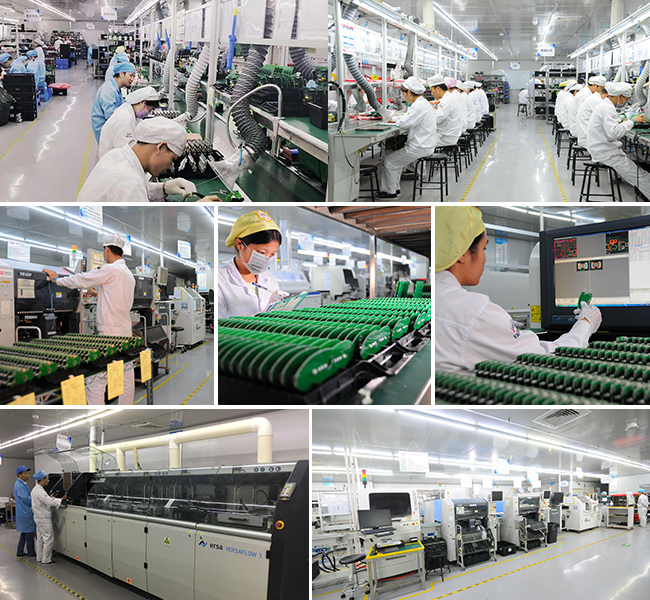

With complete dust free & esd protection smt workshop, FASTPCBA has win trust and support from domestic and abroad customers of industrial control, medical,power communication, automotive etc. All pcba products here abide by IATF16949 & ISO14000 & ISO13485 & ISO9001 certificates, reliable and stable pcb manufacturing and assembly service are assured.

FASTPCBA believes quality derives from profession, reputation wins the future. From grass-roots employees to senior management all concentrate on precise and high quality pcba solutions to provide better service for customers.

PCB Capability

Article	Description	Capability
Material	Laminate materials	FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting	Number of layers	1-48
Board Cutting	Min.thickness for inner layers (Cu thickness are excluded)	0.003”(0.07mm)
Board Thickness	Standard	(0.1-4mm±10%)
	Min.	Single/Double:0.008±0.004”
		4layer:0.01±0.008”
		8layer:0.01±0.008”
	Bow and twist	no more than 7/1000
Copper Weight	Outer Cu weight	0.5-4 0z
Copper Weight	Inner Cu weight	0.5-3 0z
Drilling	Min size	0.0078”(0.2mm)
	Drill deviation	±0.002″(0.05mm)
	PTH hole tolerance	±0.002″(0.005mm)
	NPTH hole tolerance	±0.002″(0.005mm)
Solder Mask	Color	Green,white,black,red,blue…
	Min solder mask clearanace	0.003″(0.07mm)
	Thickness	(0.012*0.017mm)
Silkscreen	Color	white,black,yellow,blue…
Silkscreen	Min size	0.006″(0.15mm)
Max Size of Finish Board	700*460mm
Surface Finish	HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline	Square,circle,irregular(with jigs)
Package	QFN,BGA,SSOP,PLCC,LGA

Delivery Time for PCBA

Order Conditions	Standard Delivery Date	The fastest Delivery Date
Prototype (<20 pcs)	2 days	8 hours
Small Volum (20-100 pcs)	3 days	12 hours
Medium Volum(100-1000 pcs)	6 days	24 hours
Mass productions (>1000 pcs)	Depends on BOM	Depends on BOM

Automobile Electronic FR4 4OZ PCBA Board Assembly 4mm Thickness
